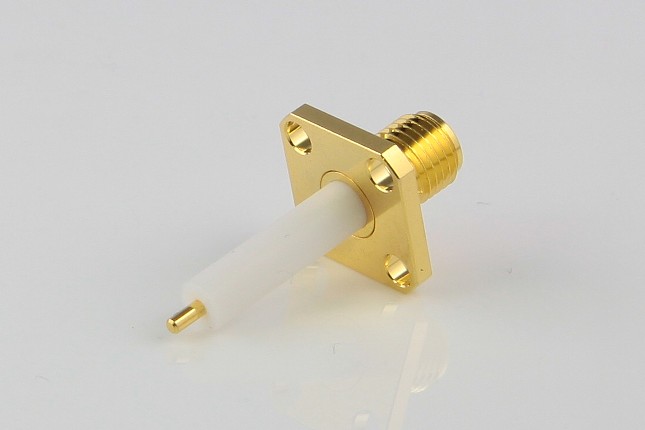

SMA Female Solder Straight Panel 4 Hole
- Item No.:782S4H-XX-07-1TGG-5
- Product Type:Connector
- Product Series:SMA
- Gender:Female
- Application:Solder
- Orientation:Straight
- Mounting:Panel 4 Hole
- Drawing Download : 782S4H-XX-07-1TGG-5
- Test Report :Contact Us
|
Impedance (Ohms) |
50 |
|
Body Finish |
Gold |
|
Body Material |
Brass |
|
Contact Finish |
Gold |
|
Contact Material |
Beryllium |
|
Insulator Material |
PTFE |
|
Max Frequency (GHz) |
12 |
|
Polarity |
Standard |
|
Mating Cycles |
500 cycles min.(For Beryllium copper Female Contact Only) |
|
Package Type |
BAG |
Other materials requested please feel free to contact us.
